Download RSLogix 500, RSLogix 500 Emulate & RSLinx for FREE in 2022

Introduction: –

In this post I will give you step by step guide to Download RSLogix 500, RSLogix 500 Emulate & RSLinx for FREE in 2022 and it is complete PLC programming packages provide by Rockwell automation.

It is a complete software package for writing and emulating PLC programming provided by Rockwell Automation.

In this software package, you have to download this three PLC software from the Rockwell automation download center. In this software package, you have to download these three software lists below.

  • RSLogix 500
  • RSLogix Emulate
  • RSLinx

By using this software, you can able to write a ladder logic program for Allen Bradley PLC and you can also emulate this program on your computer.

Download RSLogix 500, RSLogix 500 Emulate & RSLinx

Pre-Requirement

Before you start the download processes you have to fulfill some pre-requirements. To download this software, you must have a personal account on the Rockwell automation website.

If you have a personal account on the Rockwell automation website then you can feel free to start your first step and if you do not worry, I will help you with how to create your account on the Rockwell automation website.

Create Personal Account

Before you start downloading any software from Rockwell automation you must create an account on Rockwell automation.

After clicking this button given below you will redirect to the account creation page on Rockwell automation Website.




After reaching the Rockwell automation page you can see the table for filling details like the image given below. Tip – 1 | you can also use your normal Email Id if you don’t have a company email.


Account Creation Page

After completing this process now, you can able to access the account section after the login, and the account section looks like given below.


Account Page

Step – 1 | Search on Google

The download process starts with a Google search. Download RSLogix 500, RSLogix 500 Emulate & RSLinx for FREE in 2022 from the Rockwell download center. You have to search “Rockwell Download Center” on Google and click on the first link.

Or you can click directly on the given button to redirect and land on Rockwell compatibility and download center.



Step – 2 | Search Product

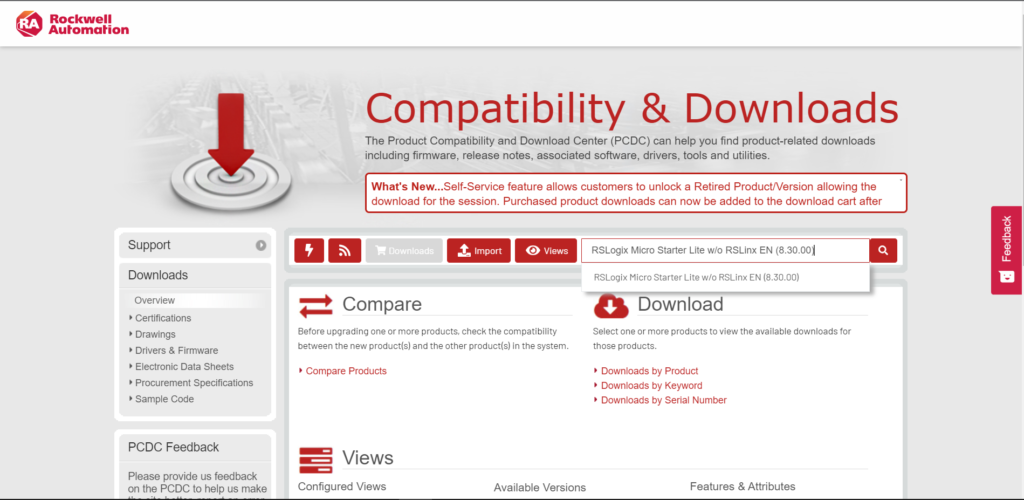

After reaching Rockwell compatibility and download center you have to click the Search icon and type RSLogix Micro Starter Lite w/o RSLinx EN (8.30.00) and Press Enter.


Rockwell Download and Compatibility Center

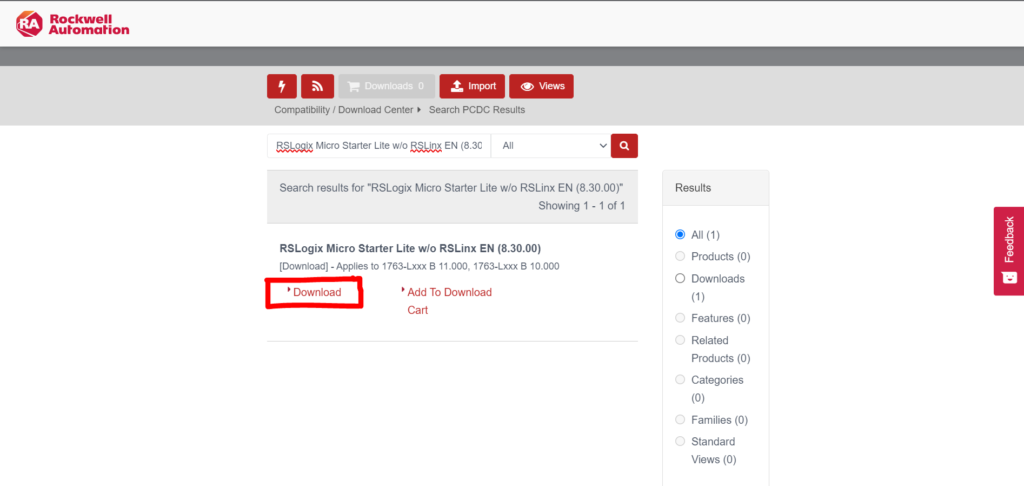

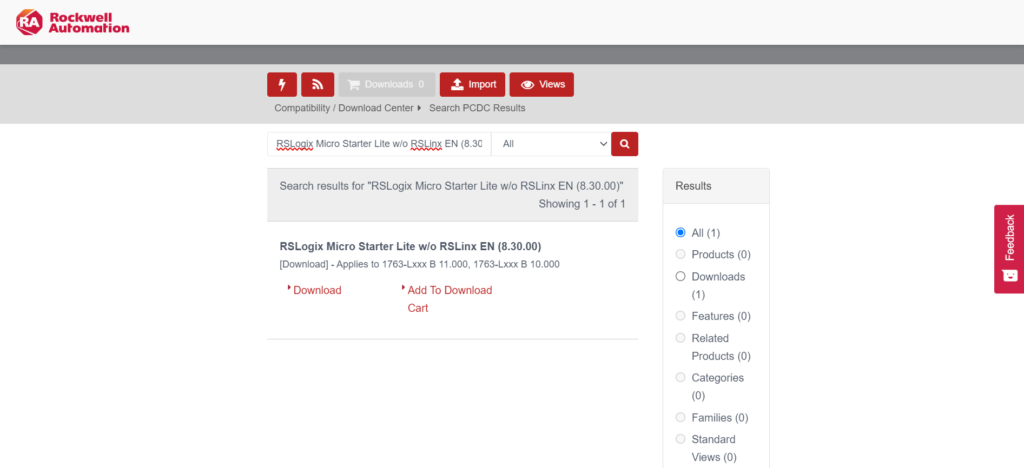

After hitting enter you will redirect to another page and it looks as per the given images.


Download page for RSLogix500

Now you have to click the download button and it is highlighted in the given below image.

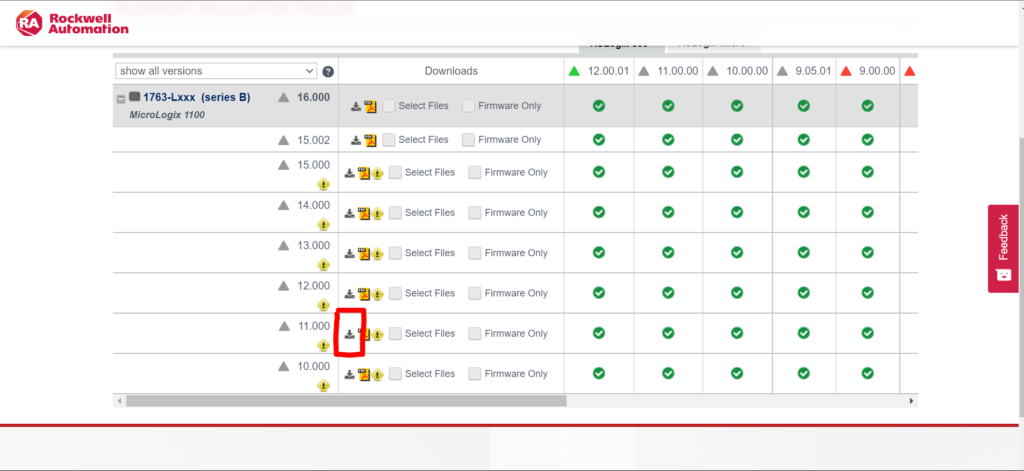

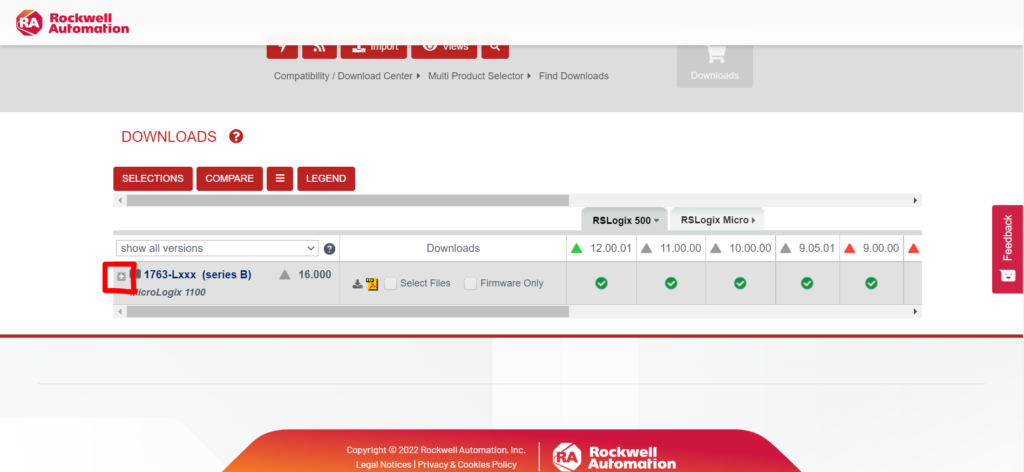

After clicking the download button now, you have a new page, you have to click tiny plus ➕ Buttons that are highlighted in a given image.



And after you click on this Plue ➕ new drop-down list will open in this list you have to click the tiny download button that is highlighted on the given images below.


Download Button for Version 11.000

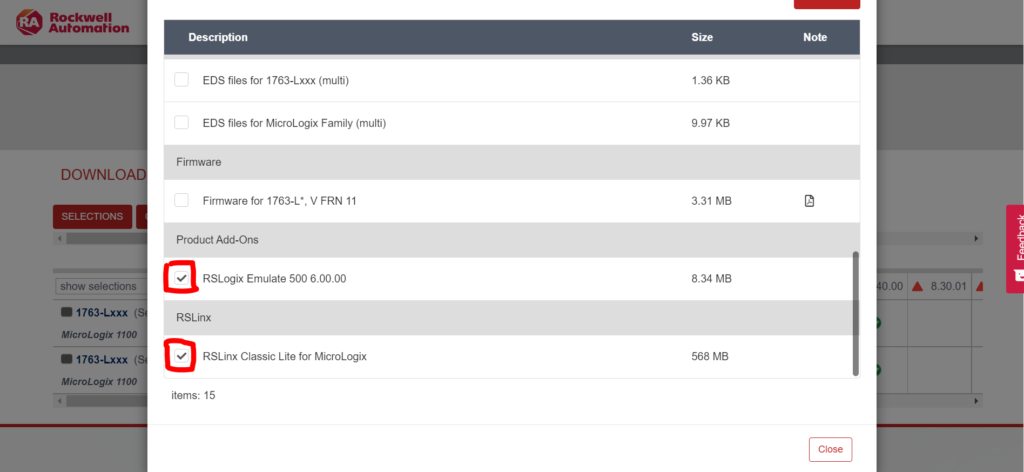

When you click the highlighted download button pop-up list will open in your browser and in this pop-up list, you have to select three products.

  1. RSLogix Micro Starter Lite w/o RSLinx EN (8.30.00)
  2. RSLogix Emulate 500 6.00.00
  3. RSLinx Classic Lite for MicroLogix

Download checkmarks for Rockwell software

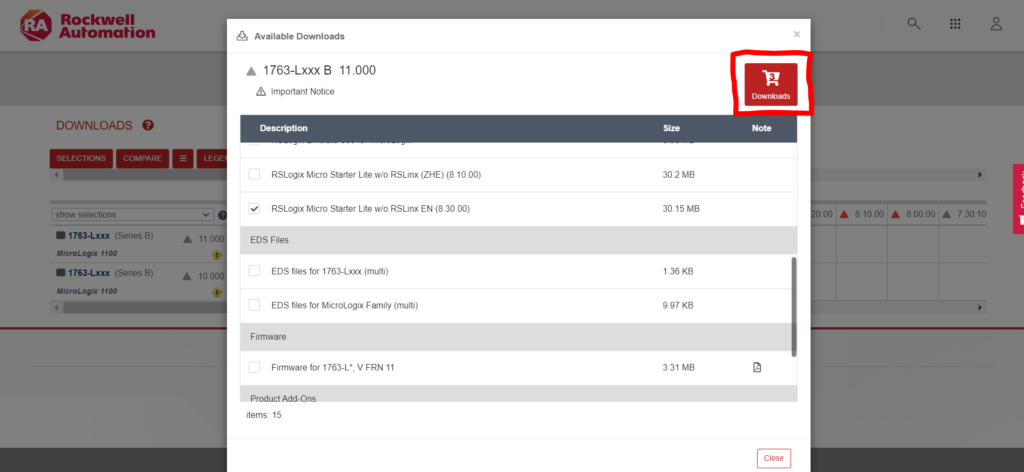

Now you have to click on this red cart button that is highlighted in this given below.


Downlow Cart Button for RSLogix 500

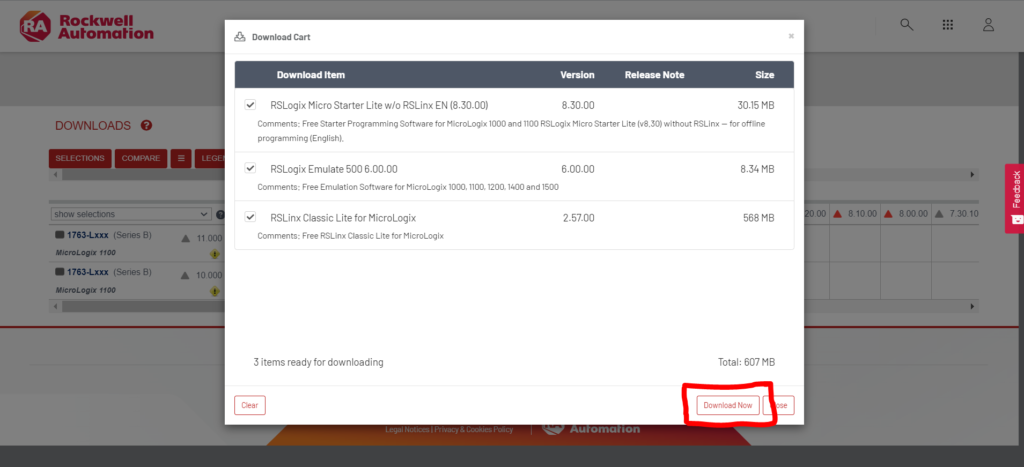

Now your final list of products will generally make sure you select all these three products items and now you have to click on the download button.

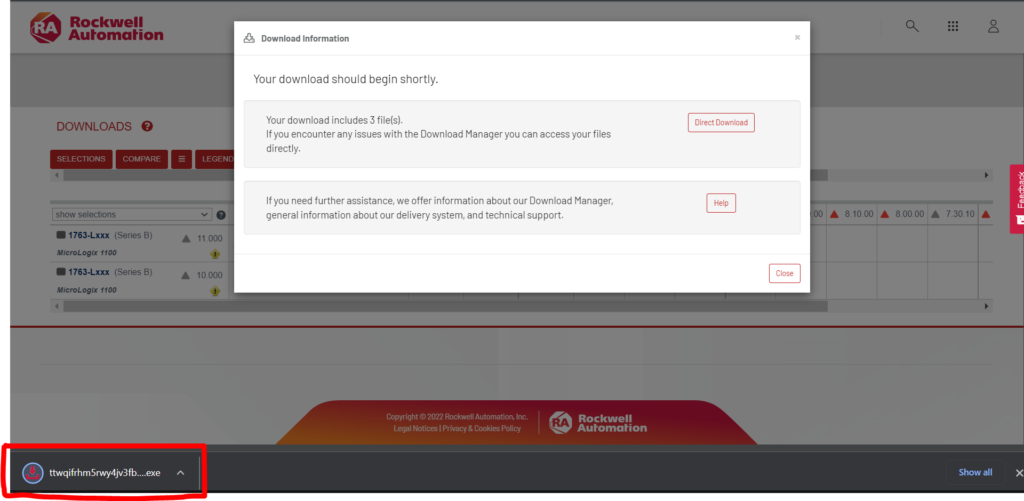

When you click on the download now button user’s Agreement pop-up will open and you have to accept and click on Accept and Download button. and when you click immediately .exe file will start to download on your device.



Now you can start the installation process on your device.

Step – 3 | Installation

After the file is downloaded you have to run the installation process on your computer. If you want to see the installation process, I suggest SolisPLC YouTube channel video. in this video, you can find all the information.


The installation process for RSLogix 500

EndNote: –

I hope by following this step-by-step guide to Download RSLogix 500, RSLogix 500 Emulate & RSLinx for FREE in 2022 should be complete without any problems.

If you find any problems then please comment below and I will try to resolve your problem.

And if you find this post helpful then please share it with your network and please consider us to support Patreon.

And if you like this website then check out my latest post on Free resources to learn about the Siemens TIA portal.
